Saturn Starter

Base Board for Saturn FPGA Modules


EOL This product is End-of-Life and no longer available.

Overview

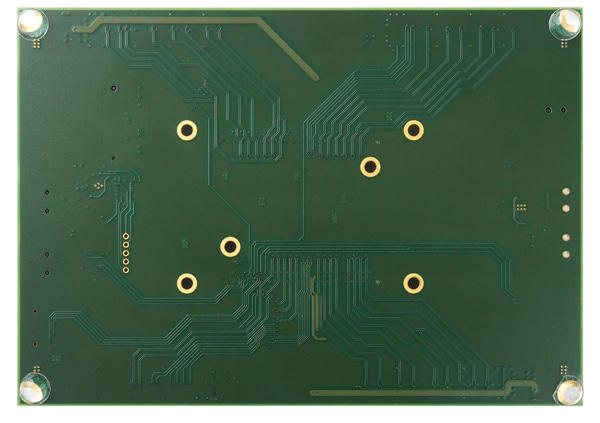

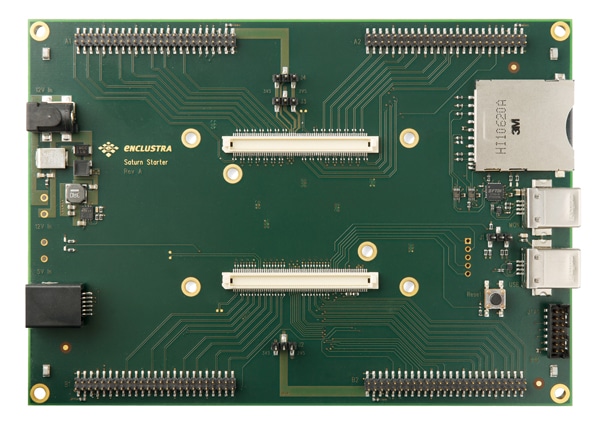

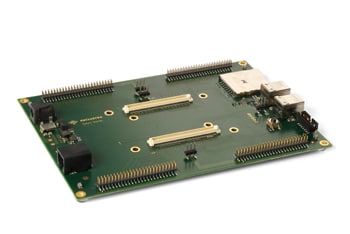

The Saturn Starter board is equipped with I/O interfaces for use with the Saturn family of FPGA modules. The board is equally well suited for Saturn FPGA module evaluation and for rapid prototyping without building custom hardware.

The board can also be used for production flashing of Saturn modules or for educational purposes.

Build your FPGA system in minutes and start taking advantage of the powerful FPGA technology.

Highlights

Works with all Saturn FPGA modules
Suitable for evaluation and rapid prototyping
Small solution size (170x120 mm)
I/O interfaces for almost all applications

Benefits

I/O extension capability through two robust I/O extension connectors
FPGA configuration via SD Card

Features

Saturn FPGA module connectors
4 50-pin general purpose extension connectors
USB 2.0 High-Speed Interface
USB 2.0 Full-Speed monitor interface (voltage/temperature/PLL configuration)
JTAG interface (FPGA configuration)
SD Card slot (FPGA configuration)
Single 12V supply voltage (power supply not included)

Please note that the available features depend on the equipped Saturn FPGA module.

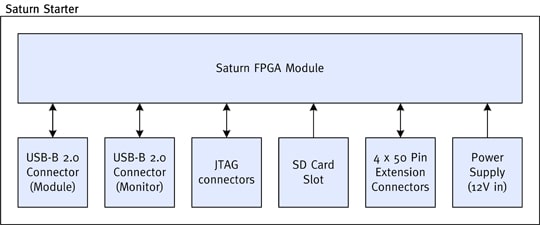

Board Architecture

Click image to enlarge

Product Selection Matrix

Product Code	Supported Saturn FPGA Modules	Temp. Range	Status
SA-STA	SA-SX1	0..+70°C

Click on table to enlarge

Target Applications

Rapid Prototyping
Industrial Automation
Embedded Computing
Communications
Digital Signal Processing

Ordering

Please contac t us
General Business Conditions
We deliver worldwide!

Support and Further Information

Please visit our contac t page
The Saturn Starter schematics is available upon request via email.
