Pluto ST11

Base Board for Pluto SoC Modules

Order Now
Pluto ST11 SoC Module Pluto ST11 SoC Module (front)

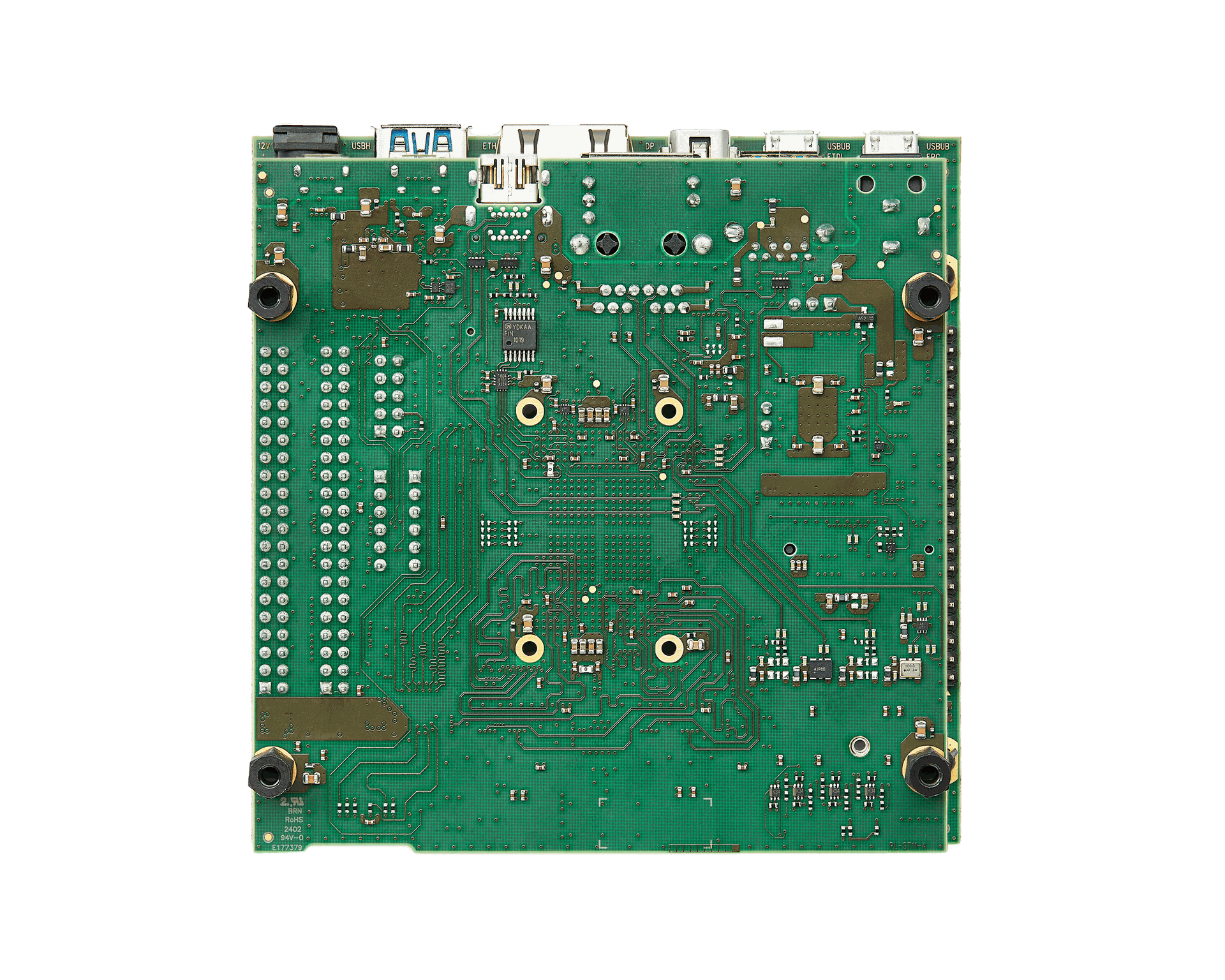

Pluto ST11 Base Board (Back)

EARLY ACCESS

We offer an early-access program for this product. Please contact us if you would like to be part of this program.



Overview

The Pluto ST11 is a versatile base board equipped with interfaces (GbE, USB 2.0/3.0, MIPI, etc.) and features (boot mode selection, IO headers, etc.) that expose the functionality of the installed Pluto family SoM. With the ST11 base board, the user can choose the Pluto family SoM installed, then experiment with the SoM to quickly verify, set-up proof of concept demos or even integrate it within a larger system.



Highlights

  • Compatible with all Pluto SoC modules
  • Mini DisplayPort for video applications
  • USB 3.0 Type A
  • Gigabit Ethernet
  • 4 x MIPI interfaces for camera and display applications
  • Suitable for prototype to series production
  • Board size 100 x 100mm
Enclustra Design Services

Benefits

  • High-Speed FPGA and flash programming over USB from a host PC
  • Provides versatile set of I/O connectivity options specialized for and a board spectrum of applications (video, AI, measurement and instrumentation equipment)


Features

  • Mini DisplayPort for video applications
  • USB 3.0 Type A
  • Gigabit Ethernet
  • M.2 slot available for Wi-Fi connectivity
  • 4 x MIPI interfaces for camera and display applications
  • FTDI USB 2.0 High-Speed device controller
  • Suitable for prototype to series production
  • Board size 100 x 100mm
  • Pmod I/O headers
  • 0.1’’ header connector for I/O interfacing
  • microSD card holder
  • 12V single supply

Please note that the available features depend on the equipped Pluto SoC module.

Board Architecture

Pluto ST11 Board ArchitectureClick image to enlarge

Product Selection Matrix

Product Code Temperature Range Status
PL-ST11-XZU20-3EG-2W-M-D4 -20..+70°C no match
PL-ST11 -20..+70°C no match

Click on table to enlarge

Key: in-stock Active limited-quantities Early Access contact-us Contact us

Pricing

Contact us

Target Applications

  • Sensing
  • Remote systems
  • Industrial controls


Related Products


Ordering

Support and Further Information
Information contained on this web page is subject to change without notice. Actual product may differ in appearance from images shown on this web page.
