Mercury+ XU9

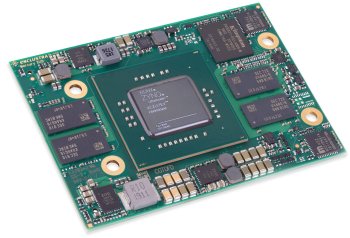

  Mercury+ XU9 FPGA Module

IN DEVELOPMENT

This product is currently in development – for more detailed information on availability, feel free to get in touch.

Overview

The Mercury+ XU9 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC flash, quad SPI flash, dual Gigabit Ethernet PHY, dual USB 3.0 and thus forms a complete and powerful embedded processing system.



Highlights

  • Built around Xilinx's Zynq Ultrascale+™ MPSoC
  • Two independent memory channels for PS (DDR4 SDRAM) and PL (DDR4 SDRAM)
  • Up to 40.5 GByte/sec memory bandwidth
  • Offers PCIe® Gen3 x16, PCIe Gen2 x4, 2x USB 3.0 and 2x Gigabit Ethernet interfaces
  • Available in industrial temperature range
  • Three 168-pin Hirose FX10 connectors with 178 user I/Os
  • Linux BSP and tool chain available

Benefits

  • A complete and powerful embedded processing system in a compact, space-saving form factor
  • Large, high-bandwidth memory, with up to 8 GByte of DDR4 SDRAM (PS) and up to 4 GByte of DDR4 RAM (PL)
  • High-bandwidth data transfer: PCIe® Gen3 x16, PCIe Gen2 x4, USB 3.0 at low integration cost
  • Lowest power consumption due to the high-efficiency DC/DC converters
  • Support for Linux embedded operating system


Features

  • Xilinx® Zynq Ultrascale+™ MPSoC
    • ARM® quad-core Cortex™-A53
    • ARM dual-core Cortex™-R5
    • Mali-400MP2 GPU
    • H.264 / H.265 Video Codec
    • 16nm FinFET+ FPGA fabric
  • Up to 8 GB DDR4 SDRAM (PS)
  • Up to 4 GB DDR4 SDRAM (PL)
  • 64 MB QSPI flash
  • 16 GB eMMC flash
  • PCIe® Gen3 ×16 and PCIe Gen2 ×4
  • 20 × 6/12.5/15 Gbit/sec MGT
  • 2 × Gigabit Ethernet
  • 2 × USB 3.0
  • 2 × USB 2.0 (host & host/device)
  • Up to 504,000 LUT4-eq
  • 178 user I/Os
    • 14 ARM peripherals
    • 64 FPGA I/Os
    • 100 MGT signals (clock and data)
  • 12 V single supply
  • Small form factor (74 × 54 mm)

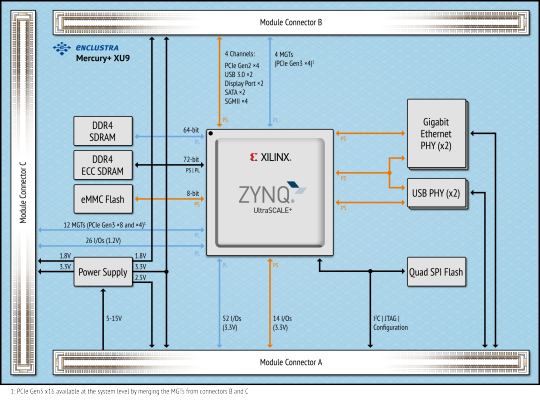

Module Architecture

Mercury+ XU9 Module ArchitectureClick image to enlarge

Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor’s datasheets.
Enclustra maintains an errata and revision history document for each product. Please also check the errata of the FPGA device and other components.

Product Selection Matrix

Product CodeMPSoCDDR4 SDRAM (PS)DDR4 SDRAM (PL)Temp. RangeStatus
ME-XU9-4CG-1E-D11E XCZU4CG-1FBVB900E 2GB 2GB 0..+85°C no match
ME-XU9-5EV-1I-D12E XCZU5EV-1FBVB900I 4GB 2GB -40..+85°C no match
ME-XU9-7EV-2I-D12E XCZU7EV-2FBVB900I 4GB 2GB -40..+85°C no match
Custom Configurations Click to view custom configuration options
TBC
TBC TBC TBC

Click on table to enlarge

Key: in-stock Mass production limited-quantities Sampling contact-us Contact us

Minimum order quantities apply for custom module configurations. Please contact us.

Pricing

Show prices in: EUR USD CHF

Product CodeMinimum Order Quantity1EURUSDCHF
1+30+100+1000+10000+1+30+100+1000+10000+1+30+100+1000+10000+
ME-XU9-4CG-1E-D11E1590532481393322679613554453371666600543444363
ME-XU9-5EV-1I-D12-E1119949048257005711145104195080665811221020931790644
ME-XU9-7EV-2I-D12-E11113191203110294677915191385126910898971489135812441068879

Click on table to enlarge

1: For non-preferred configurations, the minimum order quantity (MOQ) only applies if the modules are not in stock – please get in touch for more details.
All prices are non-binding estimates – please use the enquiry form or contact us for definitive pricing and lead-time information.

Base Boards

Select one of these base boards to get started with development straight out of the box.

Base BoardDescription
Mercury+ PE1 A feature-packed board with 3 different variants, compatible with all Mercury and Mercury+ modules.



Operating System Support

IN DEVELOPMENT

This product is currently in development – for more detailed information on availability, feel free to get in touch.

Target Applications

  • Embedded Computing
  • Data Acquisition
  • High-Speed Communications
  • Drive/Motion Control
  • Digital Signal Processing
  • Image Processing


Related Products

  • Mercury+ PE1 PCIe Base Board more
  • Universal Drive Controller IP Core more
  • Advanced Velocity Estimator IP Core more
