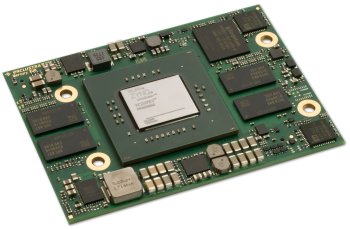

The Mercury+ XU8 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+™ MPSoC-series device with fast DDR4 ECC SDRAM, eMMC flash, quad SPI flash, dual Gigabit Ethernet PHY, dual USB 3.0 and thus forms a complete and powerful embedded processing system.
Highlights
Built around Xilinx's Zynq Ultrascale+™ MPSoC
Two independent memory channels for PS (DDR4 ECC SDRAM) and PL (DDR4 SDRAM)
Up to 28.8 GByte/sec memory bandwidth
Offers PCIe® Gen3 x16, PCIe Gen2 x4, 2x USB 3.0 and 2x Gigabit Ethernet interfaces
Available in industrial temperature range
Three 168-pin Hirose FX10 connectors with 236 user I/Os
A complete and powerful embedded processing system in a compact, space-saving form factor
Large, high-bandwidth memory, with up to 8 GByte of DDR4 ECC SDRAM (PS) and up to 4 GByte of DDR4 RAM (PL)
High-bandwidth data transfer: PCIe® Gen3 x16, PCIe Gen2 x4, USB 3.0, and a high number of available LVDS pairs provide high-speed data I/O at low integration cost
Lowest power consumption due to the high-efficiency DC/DC converters
Support for Linux embedded operating system
Features
Xilinx® Zynq Ultrascale+™ MPSoC
ARM® quad-core Cortex™-A53 (CG models: dual-core)
ARM dual-core Cortex™-R5
Mali-400MP2 GPU (only for EV models)
H.264 / H.265 Video Codec (only for EV models)
16nm FinFET+ FPGA fabric
Up to 8 GB DDR4 ECC SDRAM (PS)
Up to 4 GB DDR4 SDRAM (PL)
64 MB QSPI flash
16 GB eMMC flash
PCIe® Gen3 ×16 and PCIe Gen2 ×4
20 × 6/12.5/15 Gbit/sec MGT
2 × Gigabit Ethernet
2 × USB 3.0
2 × USB 2.0 (host & host/device)
Up to 504,000 LUT4-eq
236 user I/Os
14 ARM peripherals
122 FPGA I/Os
100 MGT signals (clock and data)
5 to 15 V single supply
Small form factor (74 × 54 mm)
Module Architecture
Click image to enlarge
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor’s datasheets.
Enclustra maintains an errata and revision history document for each product. Please also check the errata of the FPGA device and other components.
Product Selection Matrix
Product Code
MPSoC
DDR4 ECC SDRAM (PS)
DDR4 SDRAM (PL)
Temp. Range
Status
ME-XU8-4CG-1E-D11E
XCZU4CG-1FBVB900E
2GB
1GB
0..+85°C
ME-XU8-5EV-1I-D12E
XCZU5EV-1FBVB900I
4GB
2GB
-40..+85°C
ME-XU8-7EV-1E-D11E
XCZU7EV-1FBVB900E
2GB
1GB
0..+85°C
ME-XU8-7EV-2I-D12E
XCZU7EV-2FBVB900I
4GB
2GB
-40..+85°C
Custom Models
Click to view custom models options
TBC
TBC
TBC
TBC
Click on table to enlarge
Key:
Active
Early Access
Contact us
Minimum order quantities apply for custom module configurations. Please contact us.
We provide CNY prices with 13% VAT, please contact our China sales.
1+
30+
100+
1000+
10000+
1+
30+
100+
1000+
10000+
1+
30+
100+
1000+
10000+
我们在中国有分公司，提供人民币含税价，请联系kiddy.xu@enclustra.com
ME-XU8-4CG-1E-D11E
✔
844
770
681
566
477
871
794
703
584
492
819
747
661
549
463
ME-XU8-5EV-1I-D12E
1431
1306
1176
1006
834
1476
1347
1213
1038
860
1388
1267
1141
976
809
ME-XU8-7EV-1E-D11E
1568
1421
1273
1084
906
1617
1466
1313
1118
935
1521
1379
1235
1051
879
ME-XU8-7EV-2I-D12E
✔
1984
1800
1621
1392
1154
2047
1857
1672
1436
1190
1925
1747
1573
1351
1119
Click on table to enlarge
1: For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock – please get in touch for more details.
All prices are non-binding estimates – please use the enquiry form or contact us for definitive pricing and lead-time information.
Mercury Heat Sink
Large Heat Dissipation
High performance devices like the Xilinx Zynq Ultrascale+ MPSoC or Intel Arria 10 need cooling in most applications: always make sure the FPGA/SoC is adequately cooled.
The Mercury Heat Sink is an optimal cooling solution for Mercury and Mercury+ FPGA and SoC modules – it is low-profile and covers the whole module surface1.
The Mercury heatsink is provided as part of a heatsink accessory package including:
Heatsink body
Mounting material
Standard fan
Gap pad set
Design-in Kit – The Fast Way to the Market
The Enclustra Design-in Kits help shorten time-to-market for any Xilinx Zynq UltraScale+ MPSoC based application.
The design-in kits include everything you need to get started, also 2 AI example applications with all sources.
The examples are based on ResNet50 and Xilinx Vitis AI. The ready made binaries as well as the sources are packed with the box – as well as the extensive documentation how to build it yourself.
more
Base Boards
Select one of these base boards to get started with development straight out of the box.
a versatile PCIe® base board equipped with a multitude of I/O interfaces compatible with all Mercury and Mercury+ modules. Especially suited for high-speed communication applications thanks to the QSFP+/SFP+ interfaces.
A feature-packed board with 3 different variants, compatible with all Mercury and Mercury+ modules.
Warning: Due to the pinout assignments (pin types and I/O voltage levels) on module connectors B and C,
affecting the FMC interfaces, the compatibility of the Mercury+ XU8 SoC module to the Mercury+ PE1
base board is limited. It is recommended to check the FMC card pinout in detail with the Enclustra
Mercury Master Pinout and with the module and base board schematics.
