Overview

The Pluto XZU20 System-on-Chip (SoC) module is bringing the power of FPGA to portable solutions. Combines AMD InFO package MPSoC Zynq™ UltraScale+™ device with low-power LPDDR4 SDRAM, eMMC flash, quad SPI flash, Gigabit Ethernet PHY, USB 3.0 and thus forms a complete embedded processing system in only 30 × 30 mm. This ultra-compact solderable module delivers embedded intelligence, perfectly suited for a wide range of portable applications: sensing systems, medical devices, robotics, remote applications industrial control, and more. The low-power profile of the compact Pluto XZU20 SoM and the capability of the AMD MPSoC make it ideal for these demanding environments.

Highlights

• Built around the fully programmable AMD Zynq™ UltraScale+™ MPSoC.
• Low-latency FPGA fabric, allowing the system to react in real time.
• A solderable module designed to be permanently attached to the base board by soldering, rather than a plug-in connector.
• Low-power LPDDR4 (PS).
• 4.26 GB/s memory bandwidth.
• Various low power modes, power consumption starting at 0.1 Watt in low power state.
• Offers USB 3.0 and Gigabit Ethernet interfaces.
• Available in industrial temperature range.
• 596 LGA pins with up to 124 user I/Os.
• Linux BSP and tool chain available.
• Powerful and compact FPGA board.

Benefits

• A complete and powerful embedded processing system in an ultra-compact, minimal form factor, only 30 × 30 mm
• Low power LPDDR4 SDRAM up to 2 GB (PS) contributing to the overall low-power profile of the module.
• Independent real-time image and data processing.
• Increased data security and preserves valuable wireless bandwidth.
• Gigabit Ethernet and USB3.0 interfaces
• Support for Linux operating system
• Reduced cost and effort in developing portable applications.

Features

• AMD Zynq™ Ultrascale+™ MPSoC
• ARM® quad-core Cortex™-A53
• ARM® dual-core Cortex™-R5F
• Mali-400MP2 GPU
• 16nm FinFET+ FPGA fabric
• Up to 2 GB LPDDR4 SDRAM (PS)
• 64 MB QSPI flash
• 4 GB eMMC flash
• 4 × 6 Gbit/s GTR
• 1 × Gigabit Ethernet (PS)
• USB 2.0/3.0 (host/device)
• Up to 154,100 System Logic Cells
• 124 user I/Os
• 22 ARM peripherals
• 78 FPGA I/Os (24 HD + 54 HP)
• 24 MGTPS signals (clock and data)
• Mini form factor (30 × 30 mm)

Module Architecture

Click image to enlarge

Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor’s datasheets.
Enclustra maintains an errata and revision history document for each product. Please also check the errata of the FPGA device and other components.

Product Selection Matrix

Pricing

Prototype Pluto XZU20 Dev Kit is available

Click image to enlarge

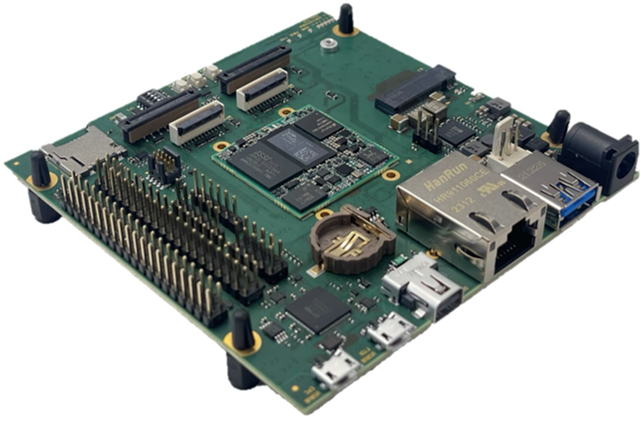

The Enclustra Prototype Pluto XZU20 Dev Kit includes the Pluto XZU20 module, mounted on ST11 base board, along with accessories. It enables you to be one of the first to experience our most compact and advanced Pluto XZU20 solution equipped with the AMD Zynq™ UltraScale+™ MPSoC device. more>

Base Boards

Select one of these base boards to get started with development straight out of the box.

Operating System Support

Target Applications

• Sensing Systems
• Remote Systems
• Industrial Controls
• Vision Systems
• Medical Smart Divices
• Robotics

Ordering

• Order/Enquiry form
• General Business Conditions
• We deliver worldwide!

Support and Further Information

• Please visit our contact page
• Subscribe to our quarterly newsletter
  • Stay informed about new products
  • Learn about Enclustra's projects
  • Get notified about upcoming events

The future fits in your palm! Explore our coin-sized Pluto XZU20 SoC for boundless potential and limitless portable applications.
