Andromeda Versal™ XVE70

Andromeda XZU90 FPGA Module Andromeda XZU90 FPGA Module (front)
Andromeda XZU90 FPGA Module (back)

IN DEVELOPMENT

This product is currently in development – for more detailed information on availability, feel free to get in touch.

Overview

The Andromeda Versal™ XVE70 System-on-Module (SoM) combines an AMD Versal™ AI Edge Gen 2 device with LPDDR5 memory, massive bandwidth, industrial-grade reliability, rich connectivity, and very high I/O density, making it ideal for low-power applications that demand real-time processing, low latency, high bandwidth, and AI capability, all within a compact, scalable hardware platform.



Highlights

  • Built around AMD Versal™ AI Edge Gen 2
  • LPDDR5 Memory (4 × 2 GB = 8 GB total)
  • 136,528 MB/s memory bandwidth
  • USB: 1× USB 3.2 + 1× USB 2.0 and 1 Gbps (PS) Ethernet interfaces
  • Available in an industrial temperature range
  • 960 connector pins with a total of 264 user I/Os.

Benefits

  • Scalable performance – from edge to cloud, Versal SoC delivers unmatched compute density and AI acceleration
  • AI/ML acceleration with integrated AI engines - embedded multicore Arm processors for flexible system design
  • Long-term support – reliable, compact, and production-ready modules backed by Enclustra’s Swiss engineering expertise; reduces development risk, ensures future-proofing
  • Versatile compute engines- Supports multifunctional SoMs with CPU, AI, DSP, and FPGA in one chip
  • •Ease of use: Enclustra’s ecosystem: design services, carrier boards, and tools, help you accelerate your project’s Time-to-Market


Features

  • Versal™ AI Edge Gen 2
    • up to 8 × Arm® Cortex®-A78AE up to 2.2 GHz
    • up to 10 × Arm Cortex R52 up to 1.05 GHz
    • 4 x Mali G78AE up to 1.05 GHz
  • AI Engine-ML V2 Tiles: 144
  • Video Codec Units: 1; Image Signal Processors: 3
  • SDRAM Size (MB): 4 × 2 GB LPDDR5
  • SDRAM Type | Bandwidth (MB/s): 136'528
  • NOC Ports: 24
  • PS Peripherals: PCIe Gen5 ×4
  • PS Ethernet 1Gpbs
  • USB: 1× USB 3.2, 1× USB2.0 only
  • PS MGT Transceivers @ Gbps: 4 GTYP @32Gbps, 4 GTR @6Gbps
  • PL System Logic Cells: 1'188'040
  • PL Total Block RAM (Mbit): 47,2
  • PL UltraRAM (Mbit): 33,2
  • PL MGT Transceivers @ Gbps: 20 GTYP @32Gbps
  • PL Peripherals
    • 4 × PCIe Gen5 ×4
    • 3 × 100G Multirate Ethernet MAC
  • PL DSP Engines: 2064
  • Flash Memory 128 MB QSPI | 64 GB UFS 3,1
  • Connector Pins: 960, I/O Pins: 264
  • Form factor Andromeda V (78 × 54 mm)

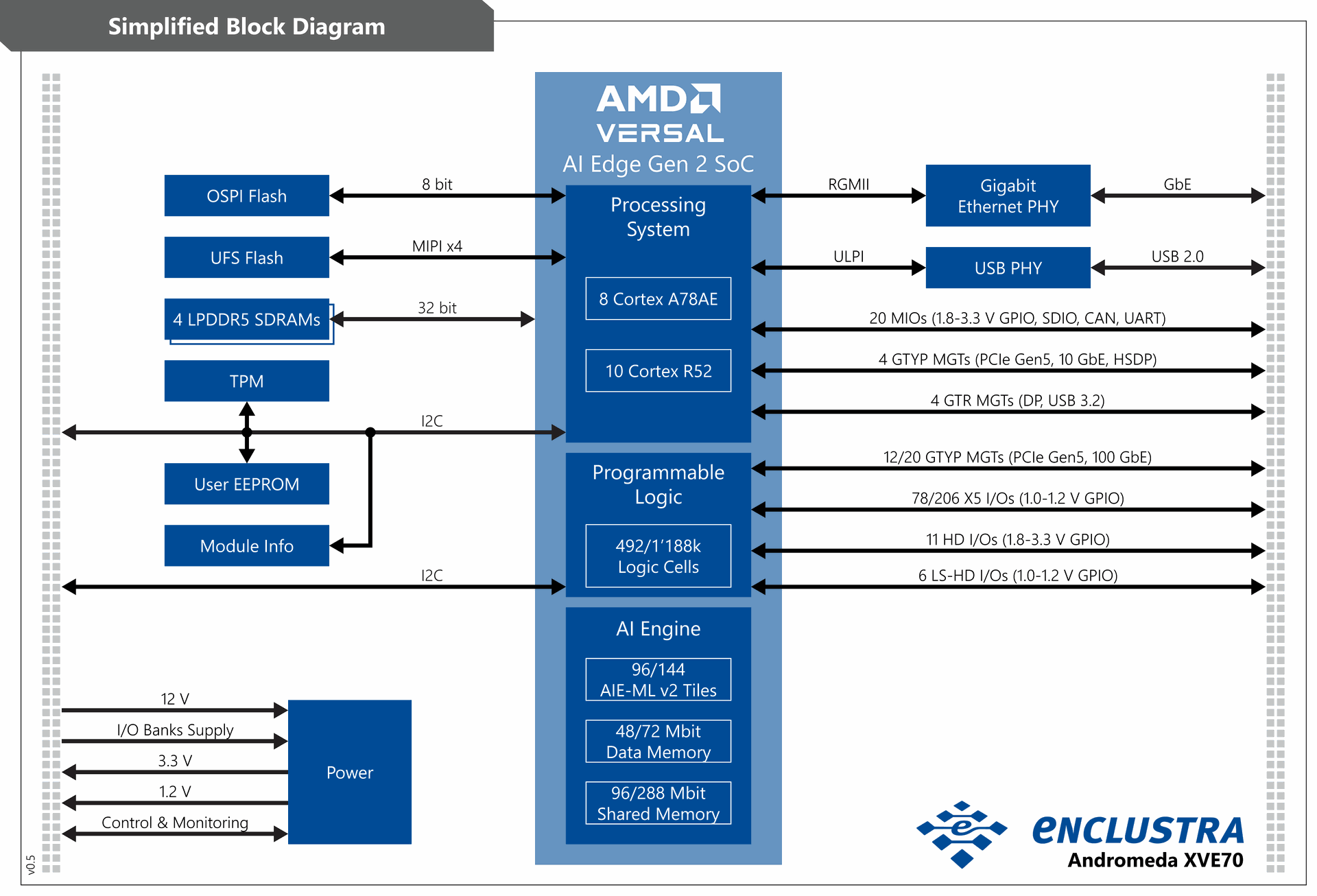

Module Architecture

Andromeda XVE70 Module ArchitectureClick image to enlarge

Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor’s datasheets.
Enclustra maintains an errata and revision history document for each product. Please also check the errata of the FPGA device and other components.

Product Selection Matrix

Product Code SoC LPDDR5 SDRAM Temp. Range Status
AM-XVE70-2VE3858-2MSI-D4 XC2VE3858-2MSISSVA2112 4 × 2 GB -40 to +85°C no match

Click on table to enlarge

Key: in-stock Active limited-quantities Early Access contact-us Contact us

Pricing

Contact us

Target Applications

  • AI Inference at the Edge
  • High-Speed Vision Processing
  • Next-Gen Communications
  • Secure Industrial Control
  • Automotive ADAS Platforms


Support and Further Information
Information contained on this web page is subject to change without notice. Actual product may differ in appearance from images shown on this web page.
