Mercury+ ST1

Base Board for Mercury/Mercury+ FPGA Modules

Order Now
Mercury+ ST1 Base Board Mercury+ ST1 Base Board (Front)
Mercury+ ST1 PCIe Base Board (Back)

Overview

The Mercury+ ST1 board is equipped with a multitude of I/O interfaces for use with the Mercury/Mercury+ family of FPGA & SoC modules. The board is equally well suited for rapid prototyping and for building FPGA systems without designing custom hardware.

Build your FPGA system in minutes and start taking advantage of the powerful FPGA technology.



Highlights

  • Compatible with all Mercury/Mercury+ FPGA & SoC modules
  • Suitable from prototype to series production
  • Small solution size (100 × 120 mm)
  • Wide range of I/O interfaces for video applications
Enclustra Design Services

Benefits

  • High-Speed FPGA and flash programming over USB from a host computer
  • Provides versatile set of I/O connectivity options, specialized for video applications
  • I/O extension capability through robust I/O extension connectors


Features

  • Mercury module connectors
  • USB 3.0 host connector
  • USB 3.0 device connector
  • FTDI USB 2.0 High-Speed device controller
  • 2 × MIPI D-PHY interfaces (CSI and DSI/CSI)
  • 2 × Gigabit Ethernet
  • HDMI connector
  • Mini DisplayPort connector
  • SFP+ connector
  • FMC HPC connector
  • Low-jitter clock generator
  • microSD slot
  • 2 × Anios 40-pin headers
  • 3 × 12-pin I/O connectors
  • 12 V single supply
  • 100 × 120 mm

Please note that the available features depend on the equipped FPGA/SoC module.

Board Architecture

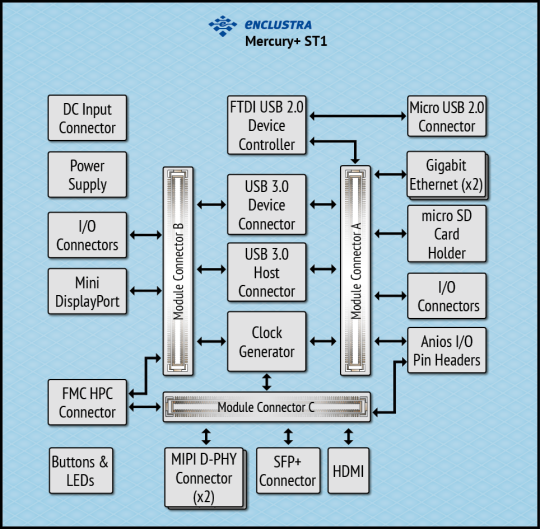

Mercury+ ST1 Board ArchitectureClick image to enlarge

Product Selection Matrix

Product Code Temperature Range Status
ME-ST1-W -20..+75°C

Click on table to enlarge

Key: in-stock Active limited-quantities Early Access contact-us Contact us

Pricing

Accessory kits

Add an accessory kit to have everything you need ready to start your project - just select the relevant accessory option when ordering.

Accessory kit pricing:

Product Code Contents Price
ACC-BASE-USB2.0 Power supply, micro USB 2.0 cable Contact us

Target Applications

  • Video Acquisition, Processing and Display
  • Digital Signal Processing
  • Communications
  • Embedded Computing
  • Rapid Prototyping
  • Industrial Automation


Related Products

  • Enclustra Mercury XU5 MPSoC Module more
  • Enclustra Mercury+ XU8 MPSoC Module more
  • Enclustra Mercury ZX1 SoC Module more
  • Enclustra Mercury+ KX2 FPGA Module more
  • Enclustra Mercury AA1 SoC Module more
