EIO-SFP1

Add-on card


EOL This product is End-of-Life and no longer available.

Overview

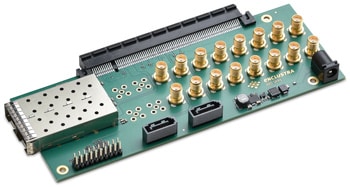

The EIO-SPF1 add-on card can be used to add a wealth of high-speed I/O interfaces to the Mercury+ PE1, and many other PCI-based FPGA base boards. Two SFP+ slots allow for the use of both optical and electrical transceiver modules - add in SMA-connected MGT channels and SATA connectors, and the SFP1 provides high-throughput connectivity options for an extremely wide range of applications.

Features

PCIe x16 edge connector
2 SFP+ slots for optical or electrical transceiver modules
4 MGT channels on SMA connectors
2 SATA connectors
312.5 MHz low jitter LVDS reference clock oscillator
Clock input and output on SMA connectors (optional)
Compatible with Mercury+ PE1 and many other PCIe-based FPGA evaluation boards

Product Selection Matrix

Product Code	Temperature Range	Status
EIO-SFP1	0..+70°C

Click on table to enlarge

Key:

Active

Early Access

Pricing

Show prices in: EUR USD CHF CNY

Product Code	Preferred model¹	EUR					USD					CHF					We provide CNY prices with 13% VAT, please contact our China sales.
Product Code	Preferred model¹	1+	30+	100+	1000+	10000+	1+	30+	100+	1000+	10000+	1+	30+	100+	1000+	10000+	我们在中国有分公司，提供人民币含税价，请联系sales.cn@enclustra.com
EIO-SFP1		646	520	450	326	280	666	536	464	336	289	626	504	436	316	272

Click on table to enlarge

1: For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock – please get in touch for more details.
All prices are non-binding estimates – please use the enquiry form or contact us for definitive pricing and lead-time information.
